Referees' Structure Catwalk


Product Information

Material: Aluminium, marine plywood and rubber

Dimensions:
Total length: 32 m + stairs = 33,6 m
Height: 0,7 m
Width: 1,0 m Length/Section: 2 m.
2 short steps at each end (2 x 0,5 m steps)

Matting:

Length: 37 m
Thickness:
2,9 mm
1 x 18 m roll, green with white center mark. Weight: 59 kg
1x 7 m roll, yellow (4m)
(with red foul line), red (2 m), och blue (1 m).
Weight: 23 kg
1 x 7 m roll, yellow (4m)
(with red foul line), red (2 m), och blue (1 m).
Weight: 23 kg
1 x 5 m roll, blue (2 x 2,5 m). Matting is included for converting to women's field of play. Weight: 16 kg
(There is no matting on the stairs)

Sold per unit

Please Note: In order to get a complete catwalk you will need to purchase 2 items Art. No. 1515003.
It is strongly recommended to purchase with Art. No. 1514010 Transport and Storage Box.


Referees' Structure Catwalk

Article Number: 1515003

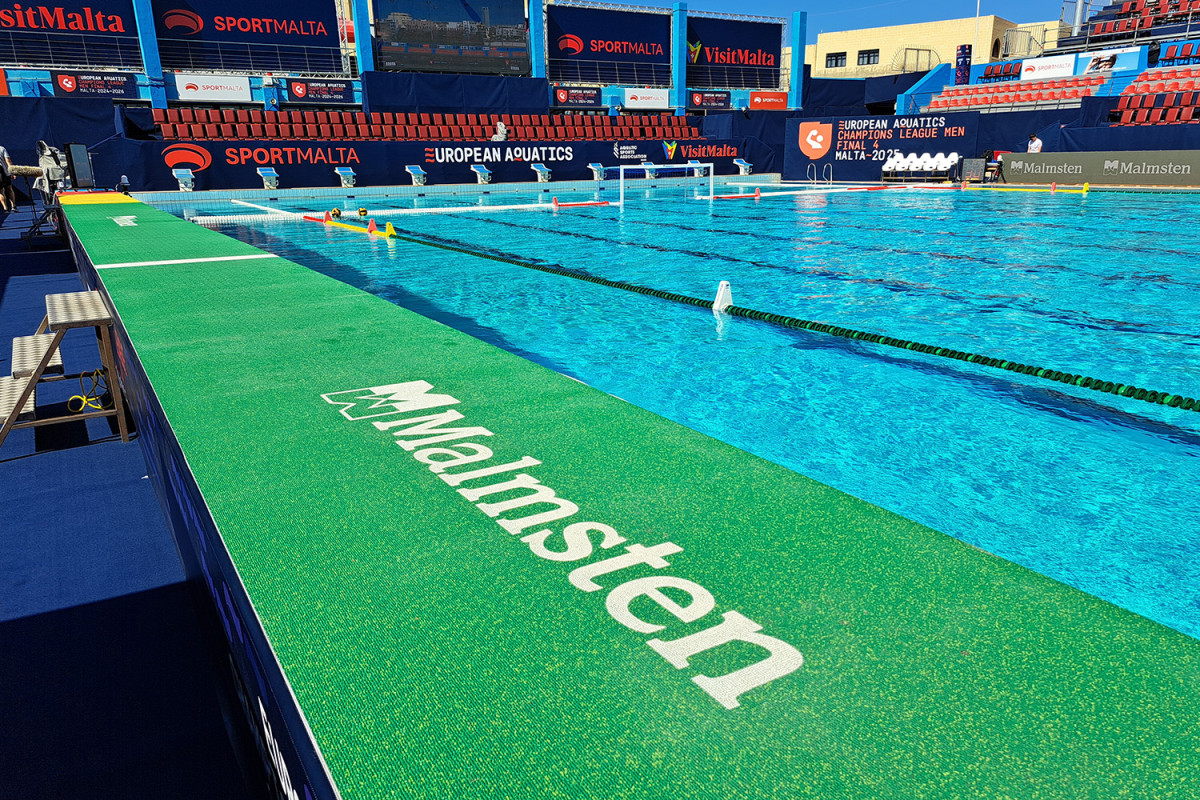

The Malmsten catwalk is a flexible system, easy to install and to put away after the competition.

The catwalk has the length of the field of play for water polo and is 1 m wide and 0,7 m in height. It is an easy hook-on system.

For major championships, one catwalk is required along each side of the field of play (sold per unit). The catwalk has the color markings of the field of play. The color-coded matting is an easy roll-out carpet according to World Aquatics (former FINA) revised rule, effective March 2019, and comes with an add on to inter-change between field of play men and women. Easy conversion from men to women marking by pulling the 2 yellow pieces inwards (to indicated position 25 m). The catwalk can be delivered in Lockable Storage boxes on wheels (sold separately). Art. no. 1514010

This platform may be used for other activities around the pool.

To purchase a complete referees catwalk you will need two sides of Art. No. 1515003.

To operate and store and transport a complete catwalk please ensure to purchase 4 storage boxes Art. No. 1514010.

One side Catwalk includes:

-16 x 2 m sections
-4 x 0.5 m sections
-34 x 0.7 m legs
-4 x 0.46 m legs
-8 x 0.23 m legs

For the short steps there are 8 legs 0.23 m with 8 large pins.
Total matting: 37 m

Main features:
• Official product for LEN and World Aquatics (former FINA)
• Solid, water proof, with anti-slip cover
• Easy hook-on system

Downloads

1515003 Catwalk Assembly v19.22 EN.pdf
